High quality video
Simultaneous H.264 and Motion JPEG
Edge storage
High resolution quad-view
PTZ support
Power over Ethernet

Efficient 16-channel solution

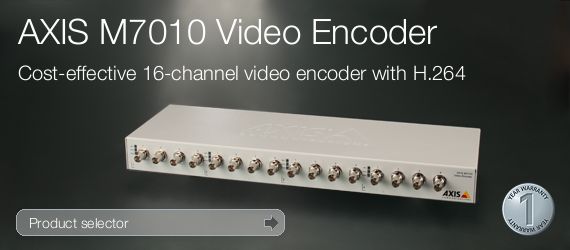

AXIS M7010 Video Encoder is an easy-to-use 16-channel video encoder with good video performance. It can simplify migration to network video without upgrading existing camera systems.

Affordable, yet powerful
AXIS M7010 provides edge storage through four microSDHC memory card slots. It supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes. The video encoder features both RS-422 and RS-485 for controlling analog PTZ cameras.

The easy way to a smarter CCTV system
AXIS M7010 is perfect for large analog video installations, especially where an IP network infrastructure is already in place. It is powered over Ethernet using the same cable as for data transmission, which simplifies installation. A power supply is also included in the package.

Reduced bandwidth and storage
AXIS M7010 can deliver two simultaneous video streams, one in H.264 and another in Motion JPEG, at 15 frames per second in resolutions up to D1 (720x480 in NTSC, 720x576 in PAL). The H.264 video compression format drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is supported for increased flexibility.

카다로그
AXIS M7010 비디오 엔코더

사용자 도큐먼트
AXIS M7010 - Installation Guide
AXIS M7010 - User's Manual

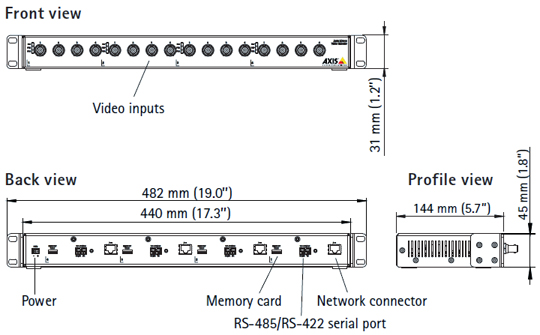

치수
Length x Width x Height: 482 mm (19.0") x 144 mm (5.7") x 31 mm (1.2")
Weight: 2540 g (5.6 lb.)
