35x optical zoom, day/night
IP52-rated protection against dust and dripping water
Extended D1 resolution, H.264
Active Gatekeeper and tour recording
Power over Ethernet Plus (IEEE 802.3at)

Outstanding performance

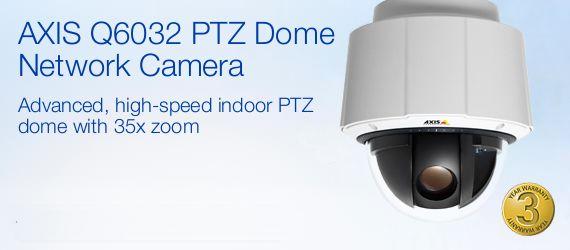

AXIS Q6032 is an indoor pan/tilt/zoom dome camera with 35x zoom, wider picture with extended D1 resolution and outstanding mechanical performance. With an IP52-rated protection against dust and dripping water, the camera enables easy and reliable installation and is ideal for use in airports, train stations, shopping malls and conference centers.

Wider picture
AXIS Q6032 offers a wider picture with an extended D1 resolution of 752x480 pixels in 60 Hz and 736x576 pixels in 50 Hz, enabling an increase of roughly 15,400 and 9,200 pixels, respectively, over standard D1 resolution, which has a pixel width of only 720 pixels.

The PTZ dome camera provides 35x optical and 12x digital zoom with autofocus. It enables continuous high-speed 360° pan and a tilt range of 180°. A new tour recording functionality enables easy set-up of an automatic tour, using a device such as a joystick to record an operator’s pan/tilt/zoom movements, including the length of time spent between positions.

High image quality day and night
The camera’s day and night functionality allows high image quality to be maintained even in low light conditions, while support for wide dynamic range enables objects in both dark and light areas of a scene to be visible. AXIS Q6032 can deliver multiple H.264 and Motion JPEG video streams simultaneously. H.264 optimizes bandwidth and storage use without compromising image quality.

Active Gatekeeper functionality
AXIS Q6032 features the Active Gatekeeper functionality, which enables the camera to automatically move to a preset position when motion is detected in a pre-defined area and then track the detected object.

Power over Ethernet for easy installations
The camera supports Power over Ethernet Plus (IEEE 802.3at), which simplifies installation since only one cable is required for power, video and PTZ controls. A midspan is supplied with the camera.

카다로그
AXIS Q6032 PTZ Dome Network Camera

사용자 도큐먼트
AXIS Q6032/Q6034/Q6035 PTZ - Installation Guide
AXIS Q6032 PTZ - User Manual
AXIS T91A - Installation Guide

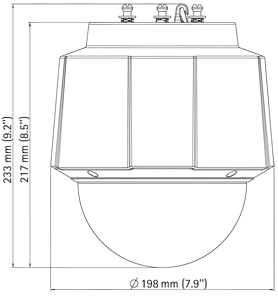

치수

Weight: 2.6 kg (5.7 lb.) - 3.2 kg (7.1 lb.)
