Operates in temperatures up to 75°C (167°F) | |
|
Easy and reliable installation: dust- and waterproof, meet military standard | |
|
HDTV 720p and 18x optical zoom | |
|
Extended tilt range of 20° above horizon | |
|
SFP slots for fiber, RJ-45 connections | |
|
I/O for alarm in/out | |
|
Active Gatekeeper | |
| For demanding outdoor video surveillance | ||

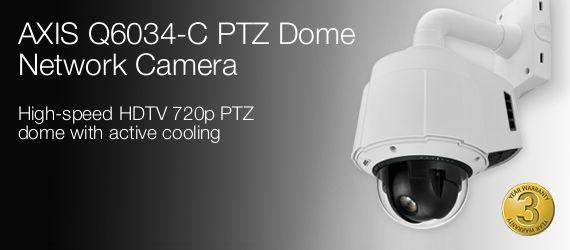

| AXIS Q6034-C is an outdoor-ready PTZ dome network camera that provides reliable surveillance in environments such as deserts, where high ambient temperatures and solar radiation require cameras to operate in extreme heat. The camera enables exceptional coverage of large areas and great details with HDTV 720p and 18x optical zoom with autofocus. It is ideal for use at construction and open-pit mining sites, along pipelines, and for city surveillance. | ||
| Reliable operation in extreme heat | ||
| With a built-in active cooling system, AXIS Q6034-C can operate in temperatures up to 75°C (167°F). The dust- and waterproof camera is IP66- and NEMA 4X-rated and meets the tough military standard, MIL-STD-810G, ensuring reliable operation in harsh weather conditions such as sandstorms. | ||
| Flexible installation and easy integration | ||
| The supplied media converter switch allows AXIS Q6034-C to be connected in a daisy chain to the network using standard network or fiber optic cables that help lower the cost of installing the cameras over long distances. The media converter switch also enables the cameras to connect to external alarm devices via two configurable input/output ports, and to 12 V power. | ||
| Compliance with SMPTE standard | ||
|
AXIS Q6034-C offers a rich viewing experience. The HDTV 720p complies with the SMPTE 296M standard regarding a 1280x720 pixel resolution, full frame rate, HDTV color fidelity and a 16:9 format.
The day and night AXIS Q6034-C supports multiple H.264 and Motion JPEG video streams.
H.264 greatly optimizes bandwidth and storage use without compromising image quality.
For the corresponding video quality, see video from AXIS Q6034-E. |
||
| Precise pan/tilt performance and intelligent video | ||
| The camera has a fast and precise pan/tilt response at 450° per second. It can tilt 20° above the horizon, enabling better views, especially over uneven terrain. With Active Gatekeeper, the camera can automatically move to a preset position upon motion detection in a pre-defined area, and track the detected object. The camera also supports third-party intelligent video applications through the AXIS Camera Application Platform. | ||
| 카다로그 | ||
 AXIS Q60-C PTZ Dome Network Cameras
|
||
| 사용자 도큐먼트 | ||
|
AXIS Q6032-C/Q6034-C/Q6035-C PTZ Dome Network Camera - Installation Guide
AXIS Q6034-C PTZ - User Manual
|
||

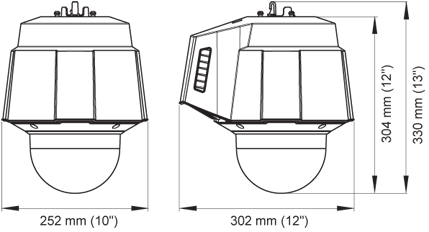

| 치수 | ||
Weight: 5.6 kg (12.4 lb.) |
||
