60 fps support
Outstanding video processing capabilities
Coax PTZ Control
AXIS Camera Application Platform
Edge storage
Power over Ethernet

Full-featured single channel solution

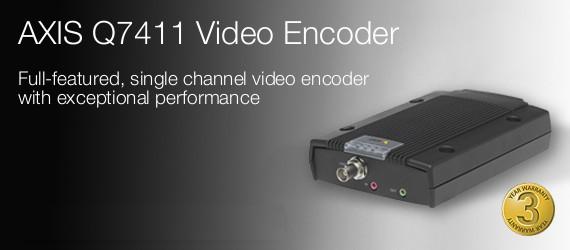

AXIS Q7411 is a powerful, full-featured video encoder solution offering 60 frames per second. The support for 60 fps provides smooth video in high motion scenes. This also enables the user to more closely follow details and changes in the monitored area, which is of major importance in forensic work.

Coax PTZ Control
AXIS Q7411 allows PTZ control over the coaxial cable, resulting in significant installation savings. In addition, the video encoder provides standard support for PTZ cameras using the serial ports.

Outstanding video processing capabilities
The video encoder can deliver multiple, individually configurable video streams simultaneously at full frame rate in all resolutions up to D1 (720x480 in NTSC, 720x576 in PAL).

Reduced bandwidth and storage needs
AXIS Q7411 offers the highly efficient H.264 video compression format both in Base and Main profile, with significant savings in bandwidth and storage. Motion JPEG is also supported for increased flexibility.

Intelligent video capabilities
AXIS Q7411 offers intelligent capabilities such as motion detection, active tampering alarm and audio detection. Other features include two-way audio and microSD/microSDHC memory.

AXIS Q7411 비디오 엔코더

사용자 도큐먼트
AXIS Q7411 Video Encoder - User's Manual
AXIS Q7411 Video Encoder Installation Guide

Height x Width x Length: 37 mm (1.5") x 109 mm (4.3") x 172 (6.8")
Weight: 520 g (1.1 lb.)
