Superb video quality
Multiple H.264 streams
4 audio channels
Support for balanced microphones
Intelligent video capabilities
High-density solution

High-density video encoder rack solution
AXIS Q7414 Video Encoder Blade is a 4-channel blade for video encoder rack solutions, enabling large numbers of analog cameras and audio channels to be integrated into an IP-based, high-density video surveillance system. When AXIS Q7414 blades are used with AXIS Q7900 Rack, up to 56 analog cameras can be supported in one 4U, 19-inch rack.

Outstanding compression capabilities
AXIS Q7414 supports high performance H.264, with true multi-streaming from each channel. It can provide multiple, individually configurable video streams from each channel at full frame rate in all resolutions up to D1 (720x480 in NTSC, 720x576 in PAL). Motion JPEG is also supported for increased flexibility.

Intelligent video capabilities
AXIS Q7414 offers intelligent capabilities such as enhanced video motion detection, active tampering alarm and audio detection. The encoder¡¯s external inputs and outputs can be connected to devices such as sensors and relays, enabling the system to react to alarms and activate lights or open/close doors.

Wide range of analog PTZ cameras supported
All Axis video encoders connect to analog pan/tilt/zoom (PTZ) cameras to allow for easy operation across the IP network. Axis' open policy ensures simple and fast integration with most analog PTZ cameras on the market by including software drivers for more than 25 different analog cameras, including products from American Dynamics, Bosch, Canon, Panasonic, Pelco, Philips, Samsung, Sensormatic and Sony.

Ä«´Ù·Î±×
AXIS Q7414 ºñµð¿À ¿£ÄÚ´õ

»ç¿ëÀÚ µµÅ¥¸ÕÆ®
AXIS Q7414 - Installation Guide
AXIS Q7414 - User's Manual

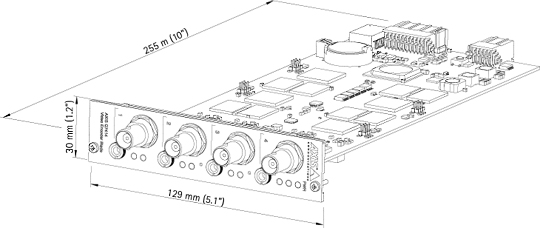

Ä¡¼ö
Weight: 229 g (0.50 lb.)
