Rugged design
Extended temperature range
SFP slot for fiber connection
Edge storage
AXIS Camera Application Platform
Power over Ethernet
H.264 and Motion JPEG streams

Rugged video encoder for tough environments
AXIS Q7424-R is a high performance 1-4 channel standalone solution that enables flexible migration of analog cameras into an IP-based video surveillance system in challenging conditions. AXIS Q7424-R features a rugged design optimized to withstand vibrations, shocks and extreme temperatures.

Reduced bandwidth and storage needs
AXIS Q7424-R offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility.

Powerful and full-featured
AXIS Q7424-R supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes, using the built-in RS-422 and RS-485 serial port. The video encoder also includes edge storage through a built-in SD/SDHC memory card slot.

Flexible network interface
AXIS Q7424-R features an SFP slot for optional fiber connectivity, which gives the flexibility to connect the video encoder cost-effectively to the network over long distances.

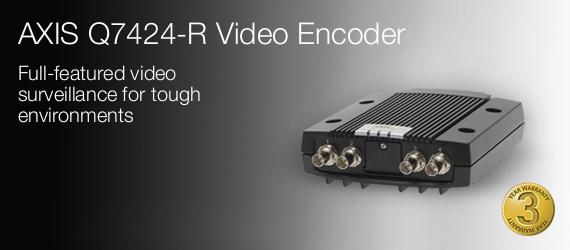

AXIS Q7424-R Video Encoder

사용자 도큐먼트
AXIS Q7424-R - User Manual
AXIS Q7424-R Video encoder - Installation Guide

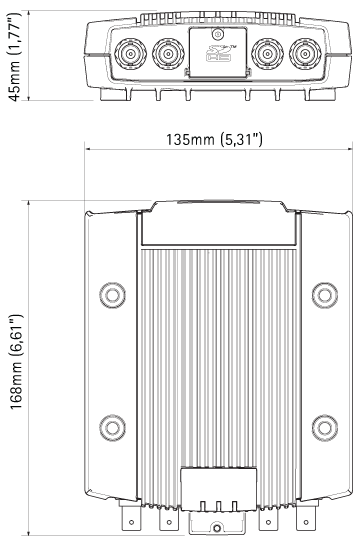

Length x Width x Height: 168 mm (6,61") x 135 mm (5,31") x 45(1,77")
Weight: 800 g (1.7 lb.)
