Wide Dynamic Range with dynamic capture at HDTV 720p |
|
|
Remote back focus capability |
|
|
Day/night functionality |
|
|
Multiple H.264 video streams |
|
|
Power over Ethernet |
|
|
Outdoor-ready with Arctic Temperature Control |
|
|
| Video with exceptional clarity and sharpness |
|
AXIS Q1604-E Network Camera enables clear identification of both people and objects, even in highly variable lighting conditions with for example backlight or intense contrasts.
It is perfect for monitoring tunnel passages e.g. city surveillance applications
|
|
| Dynamic capture capabilities |
|
The camera's Wide Dynamic Range with dynamic capture uses several images with different exposure times.
The advanced image processing results in video with exceptional clarity and sharpness.
AXIS Q1604-E can handle complex environments such as when light comes through a tunnel creating both shadow and bright zones.
No part of the image turns out too dark or too bright.
|
|
| Compliance with standards for HDTV |
|
The camera delivers progressive scan image quality at 1MP or HDTV 720p in compliance with the SMPTE standard in resolution.
It can generate multiple, individually configurable H.264 and Motion JPEG video streams simultaneously.
|
|
| Outdoor-ready video surveillance |
|
AXIS Q1604-E is IP66-rated and comes with a wall mount bracket, sunshield and Ethernet cable.
It is protected from dust, rain, snow and sun, and can operate in temperatures from -40 °C to 50°C (-40 °F to 122 °F).
|
|
| Easy installation with remote back focus |
|
The focus assistant indicates when the image is in focus by the flashing front LED of the camera.
Having performed rough focusing at the lens, the remote back focus capability of the AXIS Q1604-E is conveniently used for fine tuning focus.
The unique pixel counter ensures that the viewing angle is optimized for the monitored area and required pixel resolution.
It allows the installer to easily verify that the camera installation fulfils regulatory or specific customer requirements on pixel resolution, e.g. the face of persons passing a doorway monitored by the camera.
|
|
| 카다로그 |
 AXIS Q1604-E 네트워크카메라 |
|
| 사용자 도큐먼트 |
AXIS Q1604-E - Installation Guide
AXIS Q1604-E - User's Manual
|
|

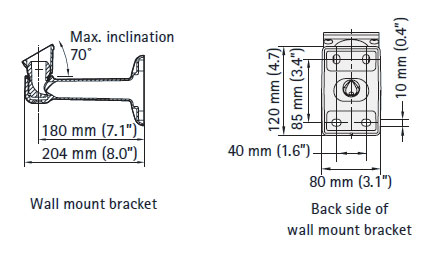

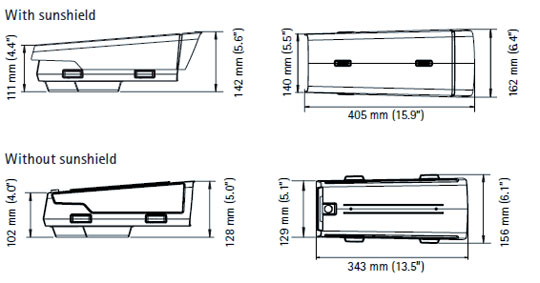

| 치수 |
Weight: 3.1 kg (6.8 lb.)
|
|
